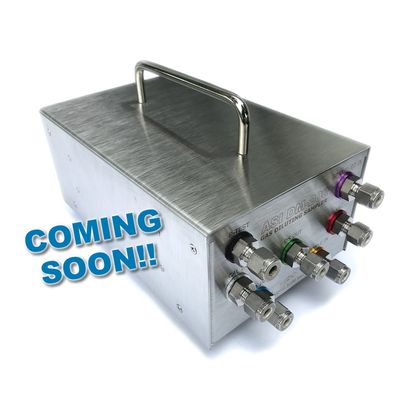

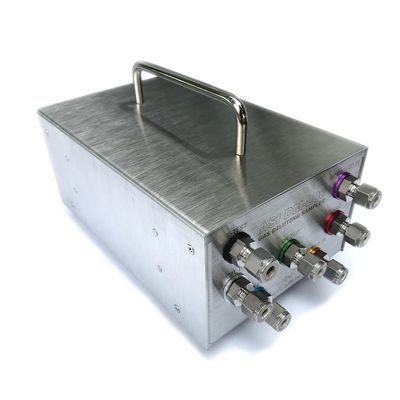

Portable Heated Sampler - DM-200HB Series

Overview

The ASI Model DM‐200HB Series Gas Diluting Sampler incorporates our DM-200 Diluting Module (glass or metal orifice version), built into an insulated stainless steel enclosure. The diluting module is heated with an innovative heat exchanger which preheats the dilution air, as well as the sample inlet and bypass circuit (using a single 400W heater cartridge). This translates into an effective, responsive, and stable heated sampler. An integral K-Type thermocouple sensor allows for maintaining your desired temperature using your favorite basic ramp/soak controller.


Whether your primary diluting device is to be added into your mobile emissions testing vehicle, used for laboratory applications, fixed process monitoring, or portable process testing - the DM‐200HB brings the kind of flexibility our customers have been looking for.

Key Features

  • Compact and lightweight design
  • Extremely low sample flow rates
  • Normal dilution ratios from 12:1 up to 350:1
  • Reduces the moisture content in the sample stream
  • Reduces the maintenance and prolongs analyzer life
  • Permits use of ambient level analyzers to measure highly concentrated streams
  • Heated System keeps pre-dilution sample & bypass sample above the dewpoint
  • 400W 115VAC Heater Cartridge (230VAC Option),  Integral K-Type T/C
  • Heat Exchanger "Clamshell" Plates Design (upper and lower).
  • Insulated stainless steel enclosure
  • Installation flexibility; Comes standard with handle and rubber feet (for lab or portable use), but this hardware can be removed to reduce overall size and mount permanently within your outside weatherproof enclosure, a rackmount controller enclosure, dedicated panel, or panel drawer.
